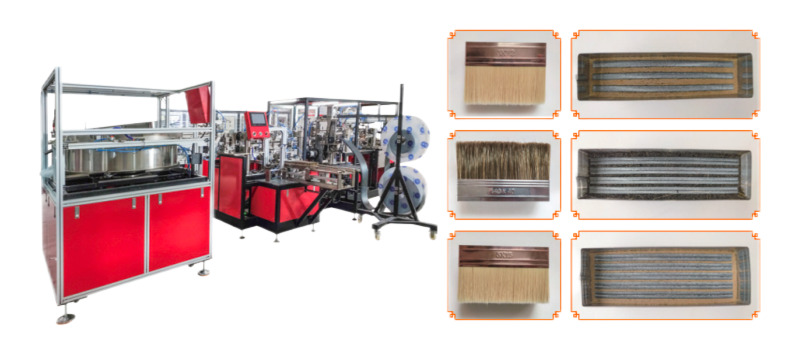

Automatic Wall / Ceiling Paint Brush Head & Ferrule Sorting Combination Machine (3''-6'')
Item No :
QSzmj-IV+TKfxj-II-QPayment :
T/TCountry Origin :
ChinaPort of Loading :
XiamenAutomatic Wall / Ceiling Paint Brush Head & Ferrule Sorting Combination Machine
Combining the Paint Brush Head Machine Model with the Ferrule Sorting Machine Model to form a complete production line for large flat brush heads ranging from 70mm to 150mm in length. The system accommodates a variety of filling materials, including natural bristle and synthetic filament, and is designed for use with corresponding ferrules. It delivers high production efficiency and consistent product quality with minimal operational labor, requiring only two personnel. This combination offers a cost-effective automation solution ideal for manufacturers seeking to enhance output and maintain competitiveness.
- Product Detail & Features
Applicable sizes: from 3" to 6" for flat brushes in width
Applicable handle material: from 120mm to 270mm for plastic or wooden handle in length
High Efficiency: Fully automated assembly process.
Superior Quality: Consistent output of premium brush head.
Minimal Labor: Operation requires only two personnel.
Cost-Effective: Affordable automation solution.
- Specifications
Paint Brush Head Machine Model QSzmj-II
|
Machine dimensions |
4.5m x 2m x 1.75m |
|
Rated power supply |
AC 220V, 50Hz |
|
Rated power |
5.65kw |
|
Air consumption |
about 0.6m³ per minute; |
|
Applicable flat brush head sizes |
from 70 to 150mm in length, from 28 to 35mm in width, from 16mm to 50mm in thickness |
|
Applicable inserted plastic strip |
3-5 layers, each layer from 4 to 7mm in thickness |
|
Applicable filling hair material |
from 60mm to 120mm in length for natural bristles, synthetic filament or mixture of bristle & filament |
|
Production capacity |
850-950pcs per hour |
|
Operator required |
2 |
Ferrule Sorting Machine, Item number: TKfxj-II-Q
|
Machine dimensions |
2.33m x 1.4m x 1.75m |
|
Rated power supply |
AC 220V, 50Hz |
|
Rated power |
0.6kw |
|
Air consumption |
about 0.6m³ per minute; |
|
Applicable flat ferrule sizes |
from 70 to 150mm in width, from 25 to 50mm in thickness |
|
Applicable ferrule material |
tinplate, stainless steel |
- Why Choose Us:
- Transportation & After-sales Service
- F&Q
Q1: What is the production capacity of the machine?
A1: The production speed can reach 850-950 pcs/hour. Ensuring high output with stable performance.
Q2: How difficult is it to operate and maintain this machine?
A2: The system adopts an intelligent touch screen control panel and automatic alarm protection. It’s easy to operate even for new workers, and daily maintenance mainly includes cleaning and regular lubrication.
Q3: What kind of after-sales service do you provide?
A3: We provide remote technical support, video training, and on-site installation guidance (if required). Spare parts and quick-response service ensure long-term reliability.
