Home Brush Head Making

Automatic Round Brush Head Machine (D:10mm - 32mm)

Name: Automatic Round Brush Head Machine (D:10mm - 32mm)
Availability: InStock

The Automatic Round Brush Head Machine specializes in producing round or cylindrical brush heads with uniform density and tight binding. Featuring intelligent control, precise adjustment, and stable performance, it guarantees consistent quality across batches.
High quality brush – Excellent production efficiency - Only 2 operators required
Model YTSzmj-IV is an automatic assembly machine for producing round brush heads.

Item No :
YTSzmj-IV
Payment :
T/T
Country Origin :
China
Port of Loading :
Xiamen

Inquiry Now

Automatic Round Brush Head Making Machine

Hengyu YTSzmj-IV Automatic Round Brush Head Assembly Machine is a high-end automated device designed to enhance the production efficiency of round brush heads. Built for reliability, it ensures consistent quality and performance during continuous operation. Its intelligent interface simplifies monitoring and adjustment, cutting costs and errors. It combines superior performance with economic benefits, making it an ideal solution for modern manufacturing.

- Product Detail & Features

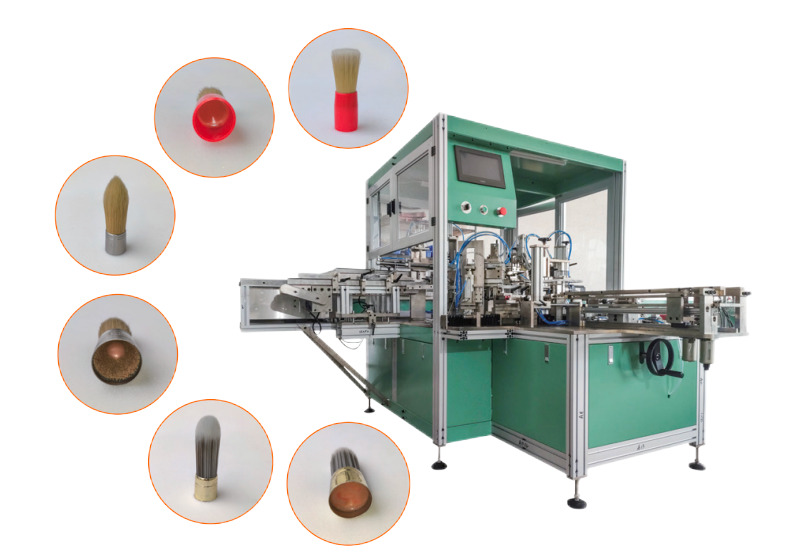

round head brush making

Applicable round ferrule sizes: from 10mm to 32mm in diameter and from 22mm to 40mm in height

Applicable peak types: flat, pen, arc

Applicable filling hair material: from 51mm to 90mm in length for natural bristles, synthetic filament or mixture of bristle & filament

Wide compatibility with ferrules & fill materials
Quick-change head system for peak types
Precision length adjustment
Stable clamping mechanism
Efficient production cycles

- Specifications

Machine dimensions	2.32m x 2.1m x 1.7m
Rated power supply	AC 220V, 50Hz
Rated power	1.0kw
Air consumption	about 0.4m³ per minute;
Applicable round ferrule sizes	from 10mm to 32mm in diameter and from 22mm to 40mm in height
Applicable peak types	flat, pen, arc
Applicable filling hair material	from 51mm to 90mm in length for natural bristles, synthetic filament or mixture of bristle & filament
Production capacity	720pcs per hour
Operator required	2

- Why Choose Us:

Over 20 years of industry experience.
More than 20 patented technologies.
Recognition as a National High-Tech Enterprise in China.
Our equipment is CE-compliant and backed by a comprehensive after-sales service system.
Products manufactured using our machinery consistently meet the standards of major brands

- Transportation & After-sales Service

All the machines shall be packed in export plywood crates.
Engineers are available to provide service onboard.
Training and technical instruction lessons will be provided during installation.
Video instruction for installation is also available if customers have professional technical engineers.
A one-year warranty is provided to the customer.

- F&Q

Q1: What materials can this paint brush head making machine process?

A1: The machine is compatible with a wide range of materials, including synthetic fibers (PP, PET, PBT) and natural bristles. It allows flexible adjustment for different brush head sizes.

Q2: What is the production capacity of the machine?

A2: Depending on brush size and filament type, the production speed can reach 700-720 pcs/hour. The fully automatic feeding and shaping system ensures high output with stable performance.

Q3: How difficult is it to operate and maintain this machine?

A3: The system adopts an intelligent touch screen control panel and automatic alarm protection. It’s easy to operate even for new workers, and daily maintenance mainly includes cleaning and regular lubrication.

Q4: Can the machine be customized for different brush types?

A4: Yes. We offer customized molds and configurations for flat brushes, round brushes, and industrial brushes, allowing clients to produce various brush shapes efficiently.

Q5: What kind of after-sales service do you provide?

A5: We provide remote technical support, video training, and on-site installation guidance (if required). Spare parts and quick-response service ensure long-term reliability.
